Sample report · IR drone diagnostics

See the condition
the ground can’t show.

Eclipse Solar pairs visible-light and infrared drone imagery with equipment data, field context and practical next steps—then turns it into a record people can actually use.

Privacy protectedClient and site details have been changed for privacy. The field photos, equipment value and finding counts are real.
Open the Sample Audit Call 303-944-5020
Visible-light drone image mapping damage on a rooftop solar module
RGB-01Visible-light damage map

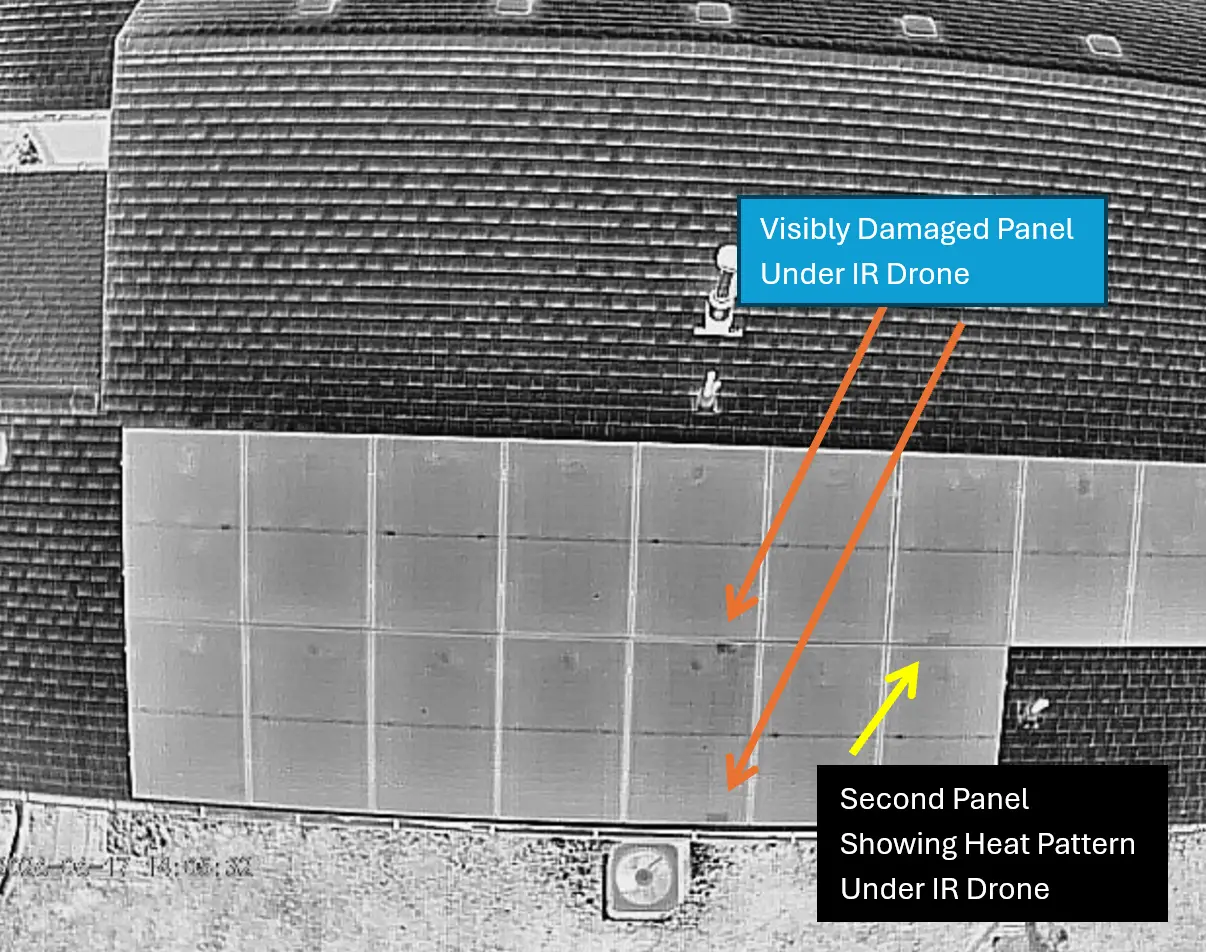

Infrared drone image mapping a visibly damaged module and a second thermal exception
IR-02Infrared comparison pass

Demonstration case

A report built to move a decision forward.

Every conclusion stays tied to a photo, a captured value or a clearly stated recommendation. Where the imagery cannot prove a failure on its own, the report says so.

ECLIPSE RESTORATION DAMAGE SUMMARY

Solar + Roof Condition Audit

REVIEW STATUSAction recommended
CLIENTMorgan ValeName changed for privacy
SITENorthstar Ridge ResidenceSummit Grove, Colorado · Location changed for privacy
CASE IDDEMO-IR-026Post-storm solar + roof review
INSPECTION SETJune 2026RGB · monochrome IR · thermal
VERIFIED NAMEPLATE390 WpModule rating captured from equipment label
VISIBLE FINDING01Impact-damaged module mapped in RGB
THERMAL EXCEPTION01Separate module flagged in infrared review
MATCHED MODESRGB + IRPhysical location correlated across image types
EXECUTIVE SUMMARY

Visible-light imagery documents one module with a clear surface impact area. The infrared pass maps that module and identifies a second panel with a different heat pattern. The second finding is a screening result—not a standalone failure diagnosis—and should be correlated with electrical testing and production data.

Matched evidence

One roof. Two ways of seeing it.

The visible image establishes physical context. The infrared image adds comparative thermal behavior. Together they tell a more complete—and more defensible—story.

VISIBLE-LIGHT RECORDRGB-01
Visible-light aerial photo showing the mapped surface damage on one solar panel
What the camera documents

A visible white impact area on a lower-row module, its precise position in the array, nearby roof penetrations and safe-access context.

INFRARED COMPARISONIR-02
Infrared aerial photo showing the mapped damaged panel and a second module with an abnormal heat pattern
What thermal contrast adds

The known damaged position remains traceable while a second, visually different module response is isolated for follow-up testing.

01LocateMap the finding to its exact row and module position.
02CorrelateCompare RGB, infrared, roof context and equipment data.
03QualifySeparate observations from conclusions that require testing.
04PreserveBuild a labeled record for service, claims and future ownership.

Measurement integrity: this source record verifies the 390 Wp module nameplate and counted findings. It does not contain a calibrated numeric temperature differential, so this sample does not invent one. Quantitative thermal values are reported only when flight conditions and calibrated capture support them.

Findings register

From image to action—without overstating the evidence.

A useful audit distinguishes what was observed, what it may indicate and what should happen next.

IDObservationEvidencePriorityNext step
PV-01Visible module impactSurface damage mapped on lower rowRGB-01PromptHands-on glass, frame and cell inspection
PV-02Abnormal thermal responseSeparate module differs from adjacent fieldIR-02VerifyIV curve, insulation resistance and circuit testing
RF-01Roof and attachment contextArray, penetrations and roof plane recordedRGB + IRScopeReview flashing, racking, wiring and grounding
DOC-01Chain of evidencePaired images, callouts and equipment data indexedReport setCompletePreserve with claim or asset records
01

Executive summary

Plain-language condition, urgency and recommended path forward.

02

Photo register

Indexed aerial, close-range, RGB and thermal evidence.

03

Anomaly map

Exact array position for every flagged module or roof concern.

04

Equipment record

Module, inverter and monitoring identification when accessible.

05

Testing scope

Specific electrical or hands-on checks needed before clearance.

06

Coordination notes

Roofing, solar, insurance and restoration dependencies in one record.

One audit · multiple decisions

Useful to everyone responsible for the property.

Select an audience to see how the same evidence is organized around the decision they need to make.

FOR HOMEOWNERS

Know what is working, what needs attention and what can wait.

  • Plain-English system health summary
  • Photo-backed repair priorities
  • Maintenance and monitoring recommendations
  • Transfer-ready record for future owners

Eclipse audit method

Capture. Correlate. Verify. Report.

Drone technology expands what can be documented safely and consistently. Professional judgment determines what the imagery does—and does not—prove.

  1. 01

    Capture

    Safe flight planning, roof context, nadir and oblique RGB views, plus thermal passes under suitable operating conditions.

  2. 02

    Correlate

    Match each thermal exception to its physical module, roof feature, shading condition and visible-light reference.

  3. 03

    Verify

    Check equipment labels, monitoring history and—when indicated—module or circuit-level electrical performance.

  4. 04

    Report

    Deliver findings, labeled evidence, limitations and a practical scope for the next responsible party.

Important:

Thermography is a screening and documentation tool. Reflections, irradiance, wind, roof temperature, soiling, shading, camera angle and operating state can affect apparent contrast. Final repair decisions should be supported by qualified field inspection and electrical testing where appropriate.
